Integrate SourceFormatX Into Source Insight

Format Source Code within Source Insight The following instructions allow you to format and indent the current open source code file in Source Insight using SourceFormatX command line tool. We used a free trial version of Source Insight Version 3.5, so if you use an older or even a newer version then several screenshots or menu items may differ from our description.

  Add a Tool Menu that will invoke SourceFormatX

1. Click "Options" -> "Custom Commands...".

2. Click the "Add" button, then input "SourceFormatX" to add a new tool.

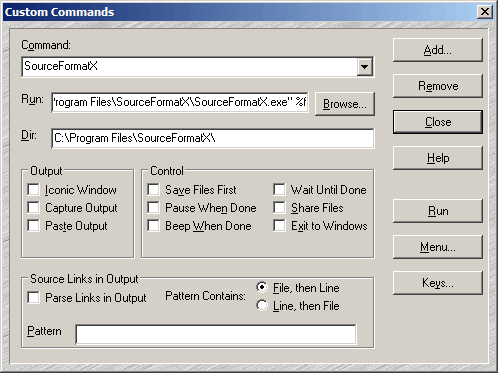

3. Please fill in the form as show below: (Assuming you installed SourceFormatX in C:\Program Files\SourceFormatX\)

• Command:    SourceFormatX
• Run:             "C:\Program Files\SourceFormatX\SourceFormatX.exe" %f
• Dir:               C:\Program Files\SourceFormatX\

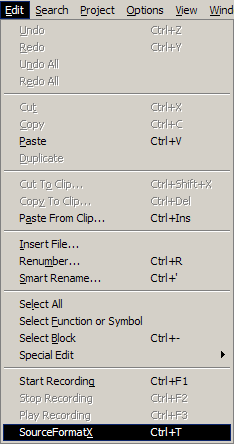

4. Click "Menu.." button, scroll the "Command" box to the command "Custom Cmd: SourceFormatX" you created. Then, insert "SourceFormatX" menu item to the "Edit" menu, as show below:

5. Click "Keys.." button, scroll the "Command" box to the command "Custom Cmd: SourceFormatX" you created.

6. Then, click "Assign New Key..." button, assign new key "Ctrl+T" or other keys.

7. Click "OK" to save settings.

  You may now invoke SourceFormatX command line tool by two ways:

1. Using Ctrl+T

2. By clicking "Edit" -> "SourceFormatX".
